Clamp krage, DIN 32676, rostfri AISI 316

Framställt i rostfritt stål AISI 304.

Designad med krage för vägning på rostfria mejerirör.

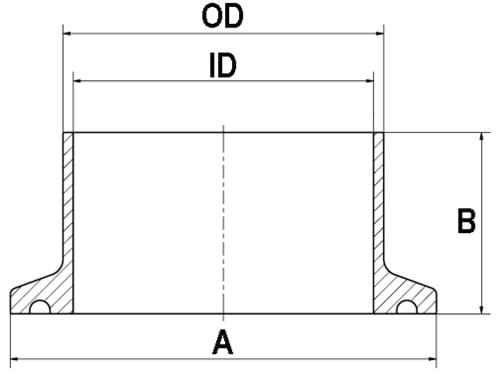

Varunummer	Nominell dim. mm.	ID Ø diam. mm.	OD Ø diam. mm.	Längd B mm.	A diam mm.	Nettovikt kg.	Basenhet
0101440101	10,0	10,0	13,0	18,0	34,0	0,060	STK
0101440151	15,0	16,0	19,0	18,0	34,0	0,060	STK
0101440201	20,0	20,0	23,0	18,0	34,0	0,060	STK
0101440251	25,0	26,0	29,0	21,5	50,5	0,070	STK
0101440321	32,0	32,0	35,0	21,5	50,5	0,050	STK
0101440401	40,0	38,0	41,0	21,5	50,5	0,050	STK
0101440501	50,0	50,0	53,0	21,5	64,0	0,070	STK
0101440651	65,0	66,0	70,0	28,0	91,0	0,17	STK
0101440801	80,0	81,0	85,0	28,0	106,0	0,170	STK
0101441001	100,0	100,0	104,0	28,0	119,0	0,240	STK
0101441251	125,0	125,0	129,0	28,0	144,4	0,320	STK
Varunummer	Nominell dim. mm.	ID Ø diam. mm.	OD Ø diam. mm.	Längd B mm.	A diam mm.	Nettovikt kg.	Basenhet
0101441252	125,0	125,0	129,0	28,0	155,0	0,470	STK
0101441501	150,0	150,0	154,0	28,0	167,0	0,500	STK
0101441502	150,0	150,0	154,0	28,0	183,0	0,550	STK
0101442001	200,0	200,0	204,0	28,0	217,4	0,700	STK
0101442002	200,0	200,0	204,0	28,0	233,5	0,750	STK
0101442501	250,0	250,0	254,0	28,0	268,0	0,900	STK
0101443001	300,0	300,0	304,0	28,0	319,0	0	STK
