Flange liner, Aseptisk DIN 11864-2.png zoom-icon

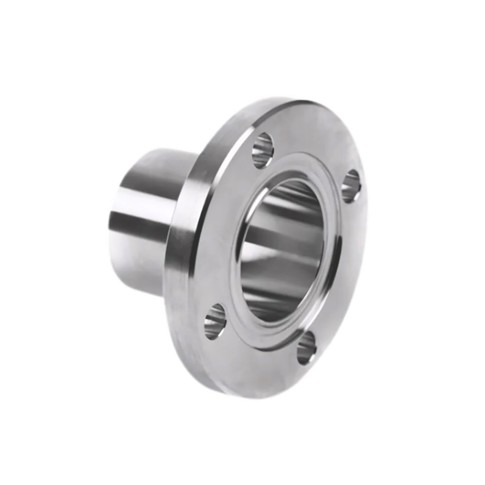

Aseptisk flänsfoder, DIN 11864-2, serie A

Framställt i rostfritt stål AISI 316L.
Följer standarden DIN 11864-2, serie A.

Varunummer Nominell dim.
mm.
D1 diam.
mm.
D2 diam.
mm.
Diam. mm.
D3
Bultdelar
diam. mm. LK
Längd L
mm.
Inbyggnadsmått L1
mm.
Nettovikt
kg.
Basenhet
0102240010A
10
10,0
13,0
54,0
37 - 4 x 9,0
40,0
26,0
0,160
STK
0102240015A
15
16,0
19,0
59,0
42 - 4 x ø 9,0
40,0
26,0
0,19
STK
0102240020A
20
20,0
23,0
64,0
47,0 - 4 X ø9,0
41,5
26,0
0,23
STK
0102240025A
25
26,0
29,0
70,0
53 - 4 x ø 9,0
40,0
26,0
0,260
STK
0102240032A
32
32,0
35,0
76,0
59,0 - 4 x ø9,0
45,0
31,0
0,30
STK
0102240040A
40
38,0
41,0
82,0
65 - 4 x ø 9,0
45,0
31,0
0,340
STK
0102240050A
50
50,0
53,0
94,0
77 - 4 x ø 9,0
45,0
31,0
0,420
STK
0102240065A
65
66,0
70,0
113,0
95 - 8 x ø 9,0
54
42,0
0,600
STK
0102240080A
80
81,0
85,0
133,0
112 - 8 x ø 11,0
58,0
42,0
0,910
STK
0102240100A
100
100,0
104,0
159,0
137 - 8 x ø 11,0
58,0
42,0
1,420
STK
0102240125A
125
125,0
129,0
183,0
161 - 8 x ø 11,0
60,0
42,0
1,710
STK
0102240150A
150
150,0
154,0
213,0
188 - 8 x ø 14,0
60,0
42,0
2,380
STK
